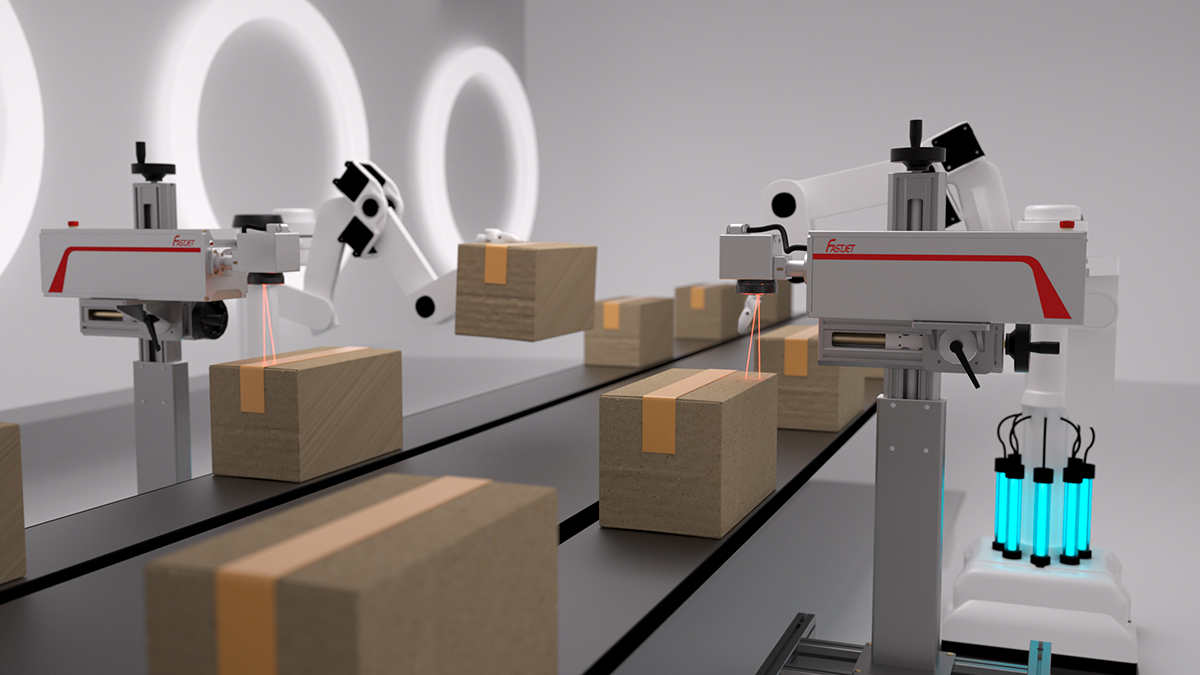

F7100U Series UV Laser Marking Machine
Product Introduction
The FASTJET F7100U series UV laser marking machine uses high-energy ultraviolet laser beams to achieve high-speed and high-precision processing on different materials. It is suitable for most materials, and provides clearer and more beautiful laser engraving on metals, plastics, and polymer materials. This laser marking machine can meet various application needs and is suitable for all industries and products.
Product Features
FCPilot Control System
Multiple sealing protection for beam path
Clean design, compact and easy to install
Applicable to laser marking on most product materials, especially achieving superior marking effects on polymer materials.

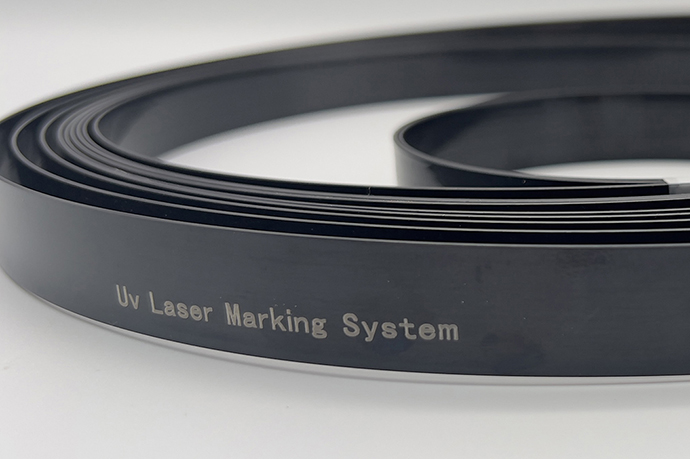

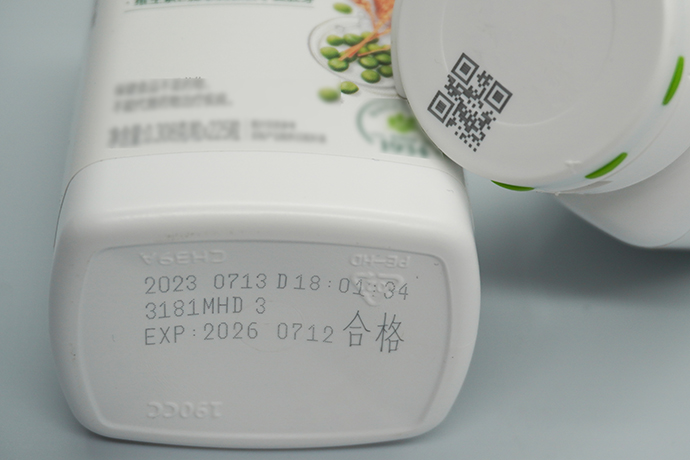

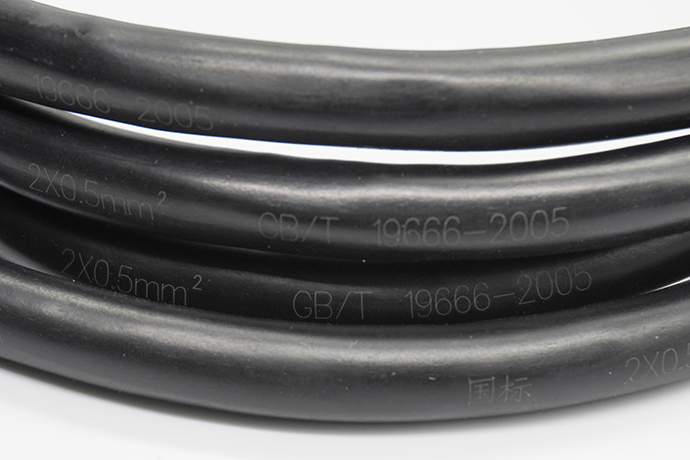

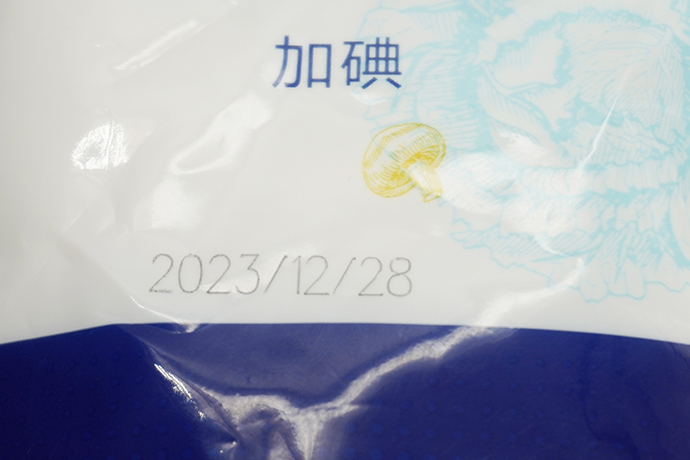

Printing Effects
Product Parameters
Technical Parameters
| F7100U Series Specifications | |
| Laser types and characteristics | Laser tube: Solid-state UV laser Wavelength: 355nm Cooling system: water-cooled (integrated) |
| Applications/ Substrates | Flexible PCB, Plastics (PE, PVC, PP, PS, POM, PC, acrylic, nylon, etc.), Metals (stainless steel, aluminum, gold, platinum, silver, titanium, brass, etc.), Wood (medium-density fiberboard, plywood, and fiberboard, etc.), Glass* |
| Speed (static marking or flying marking) | Marking speed of the scanhead: up to 9000 mm/ second* Production line speed: up to 4600 mm/second (15 feet/second)* |
| Marking characteristics | Number of lines marked: only limited by character height and markable area Standard industrial fonts (Windows®TrueType®) and single-line fonts, machine-readable codes (OCR, 2D matrix, etc.) Barcodes: Code128A, Code128B, Code128C, Code39, Code93 2D codes: QR-Code, Data Matrix, Aztec-Code, Han Xin-Code Graphics, logos, symbols, etc. Linear, circular, angular, reverse, rotate sequential and batch numbering Automatic date, layered and time code; real-time clock |
| Communication and I/O interface | UDP, TCP/IP and RS232 Inputs for encoder and sensor 3 input /2 output for status signal, machine /operation interlock, alarm output |
| User interface | Control system: FCPilot Screen size: 10.1 inches |
| Standard and optional configurations | Standard: Marking machine, 2D aluminum alloy laser machine adjustment bracket, 10.1-inch external touch screen, fiber optic sensor, universal adjustment sensor bracket, hex tool kit (UV lasers are equipped with water cooling system). Optional: Photoelectric sensor, 2000p encoder, encoder bracket, encoder backing wheel, fume extractor (single head),optional lenses (see “Marking area and working distance" in the table below for details). |
| Marking area and working distance (mm) | UV Focus Lens/F80-50*50 UV Focus Lens/F100-70*70 UV Focus Lens/F160-110*110 (Standard) UV Focus Lens/F210-150*150 UV Focus Lens/F290-200*200 UV Focus Lens/F380-250*250 UV Focus Lens/F420-300*300 UV Focus Lens/F470-350*350 UV Focus Lens/F525-400*400 UV Focus Lens/F750-500*500 UV Focus Lens/F840-600*600 UV Focus Lens/F1090-800*800 |
| Physical characteristics | Working temperature: 5-40°C (41-104°F) Humidity: 10%-90%, non-condensing Electrical requirements: 240 VAC, ~50/60 Hz, 1 PH, 0.50 kW Overall dimensions: see dimensional drawings for details Net weight: 16kg |
| Model selection | F7103U (3W UV laser marking system,Water-cooled) F7105U (5W UV laser marking system,Water-cooled) F7110U (10W UV laser marking system, Water-cooled) |
*Subject to the size/complexity of material and spray code information.
For product and application related matters, please consult FASTJET.

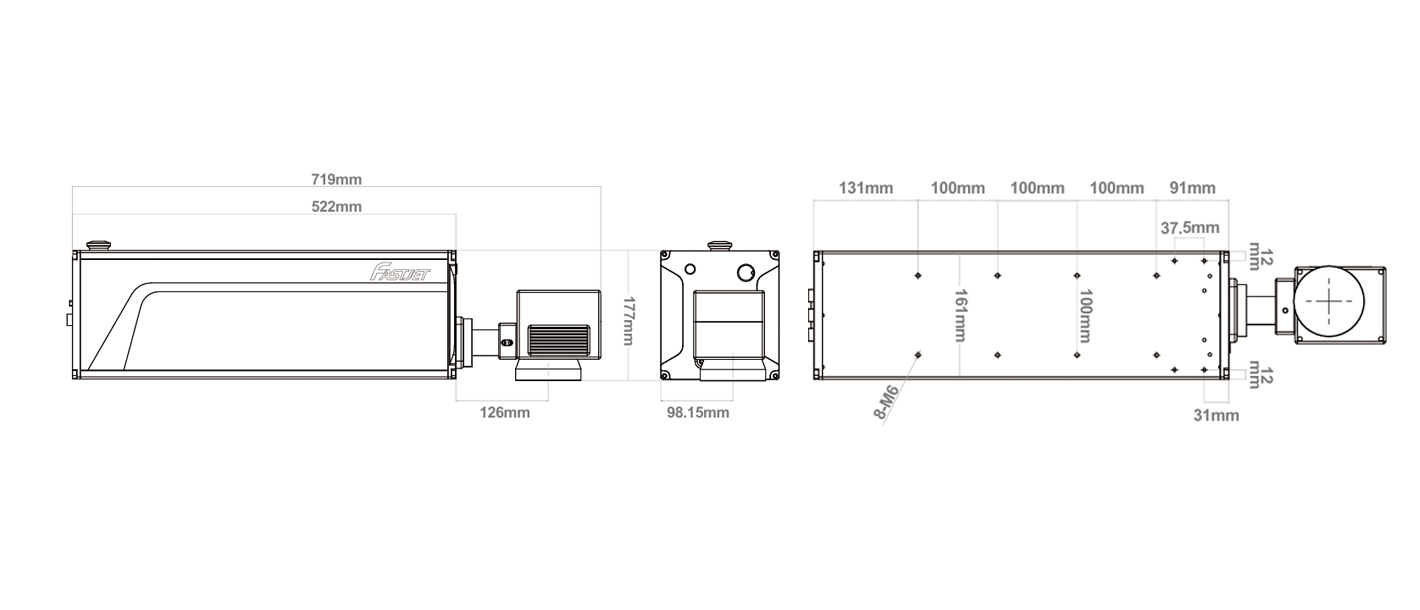

Product Dimensions (Unit: mm)
