F7100F Series Fiber Laser Inkjet Printer
Product Introduction

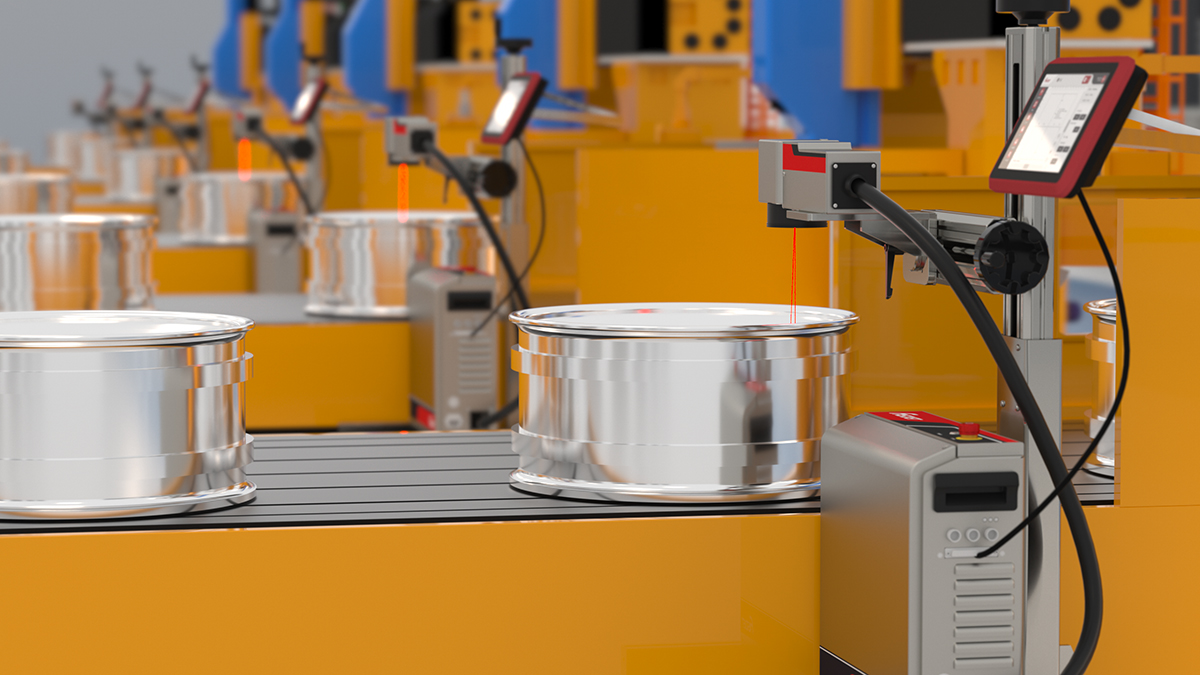

The FASTJET F7100F series fiber laser marking machine has a compact laser head, flexible installation, and can meet high-speed, high-quality marking in various production environments. Its printing content is flexible and not limited by fonts, codes, or graphics. It is an ideal marking solution for industries such as automotive parts, electronics, cans, beverages, cosmetics, pharmaceuticals, and building materials.
Product Features
FCPilot Control System
A waterproof protection cover for the laser head can be added, ensuring stable operation of the equipment even in production lines with spraying cleaning requirements.
Compact laser head, flexible installation.
A laser wavelength of 1064nm can achieve better marking effects on metal products.

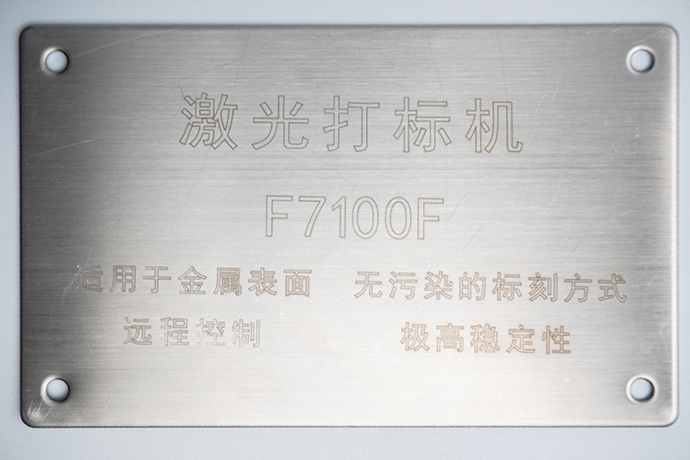

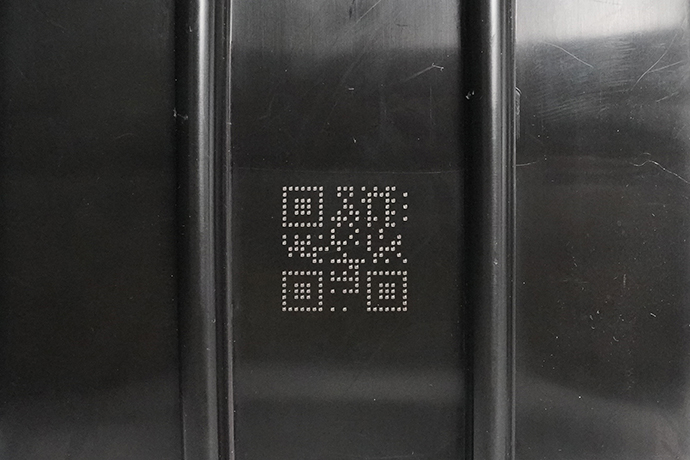

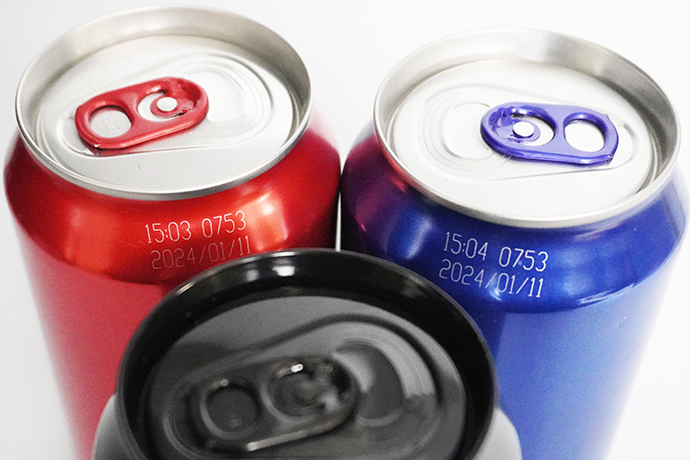

Printing Effects
Product Parameters
Technical Parameters
| F7100F Series Specifications | |
| Laser types and characteristics | Laser Tube: Ytterbium-doped pulse fiber laser Wave lengths: 1055-1070nm Cooling System: Air-cooled |
| Applications/ Substrates | Aluminum or steel packaging material, other metal materials, flexible packaging, Rigid plastics or other polymer materials (such as HDPE, PP, PVC, PS, etc.)* |
| Speed (static marking or flying marking) | Marking speed of the scanhead: up to 9000 mm/second* Production line speed: up to 4600 mm/second (15 feet/second)* |
| Marking characteristics | Number of lines marked: only limited by character height and markable area Standard industrial fonts (Windows®TrueType®) and single-line fonts, machine-readable codes (OCR, 2D matrix, etc.) Barcodes: Code128A, Code128B, Code128C, Code39, Code93 2D codes: QR-Code, Data Matrix, Aztec-Code, Han Xin-Code Graphics, Logos, symbols, etc. Linear, circular, angular, reverse, rotate sequential and batch numbering Automatic date, layered and time code; real-time clock |
| Communication and I/O interface | UDP, TCP/IP and RS232 Inputs for encoder and sensor 3 input /2 output for status signal, machine /operation interlock, alarm output |
| User interface | Control system: FCPilot Screen size: 10.1 inches |
| Standard and optional configurations | Standard: Marking machine, 2D aluminum alloy laser machine adjustment bracket, 10.1-inch external touch screen, fiber optic sensor, universal adjustment sensor bracket, hex tool kit. Optional: Photoelectric sensor, 2000p encoder, encoder bracket, encoder backing wheel, fume extractor (single head), optional lenses (see “Marking area and working distance" in the table below for details). |
| 标识区域与焦距（毫米） | 光纤场镜/F80-50*50 光纤场镜/F100-70*70 光纤场镜/F163-110*110（标准） 光纤场镜/F210-150*150 光纤场镜/F290-200*200 光纤场镜/F380-250*250 光纤场镜/F420-300*300 光纤场镜/F470-350*350 光纤场镜/F525-400*400 光纤场镜/F680-500*500 |
| Marking area and working distance (mm) | Fiber Focus Lens/F80-50*50 Fiber Focus Lens/F100-70*70 Fiber Focus Lens/F163-110*110 (Standard) Fiber Focus Lens/F210-150*150 Fiber Focus Lens/F290-200*200 Fiber Focus Lens/F380-250*250 Fiber Focus Lens/F420-300*300 Fiber Focus Lens/F470-350*350 Fiber Focus Lens/F525-400*400 Fiber Focus Lens/F680-500*500 |
| Physical characteristics | Working temperature: 5-40°C (41-104°F) Humidity: 10%-90%, non-condensing Electrical requirements: 240 VAC, ~50/60 Hz, 1 PH, 0.80 kW Overall dimensions: see dimensional drawings for details Net weight: 5/19kg(laser head/casing) |
| Model selection | F7121F (Laser power space 20W,wavelength space1064nm) F7131F (Laser power space 30W,wavelength space1064nm) F7151F (Laser power space 50W,wavelength space1064nm) |
*Subject to the size/complexity of material and spray code information.
For product and application related matters, please consult FASTJET.

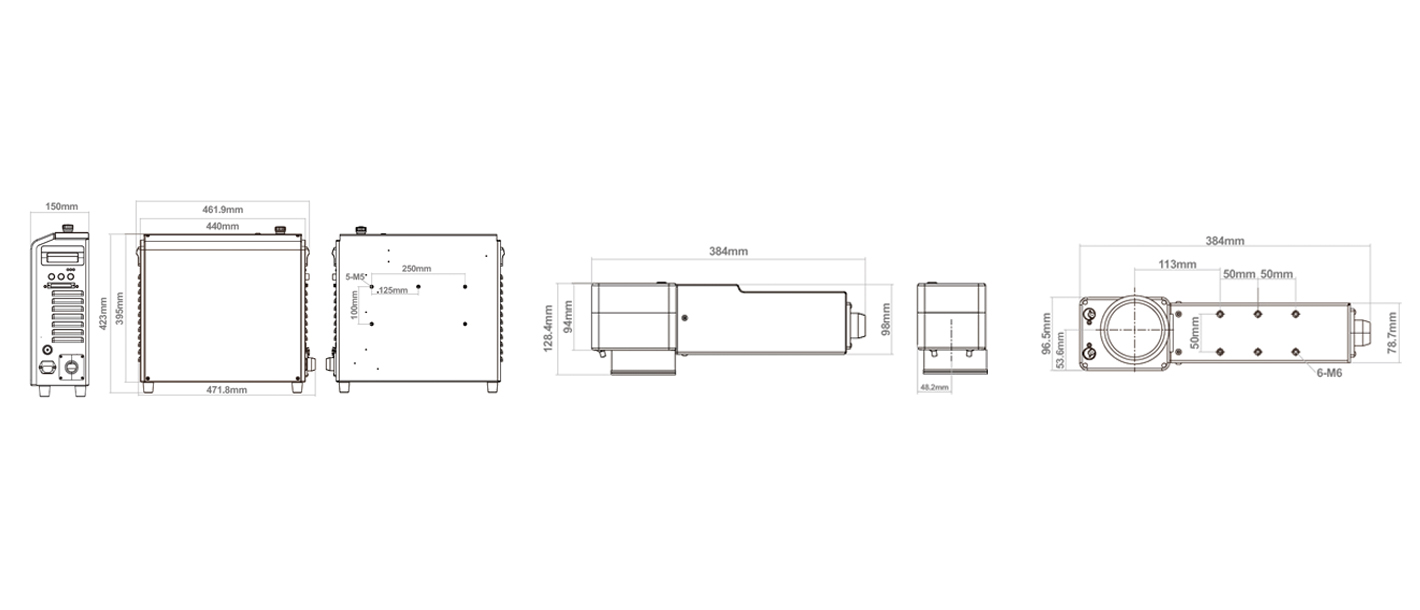

Product Dimensions (Unit: mm)
