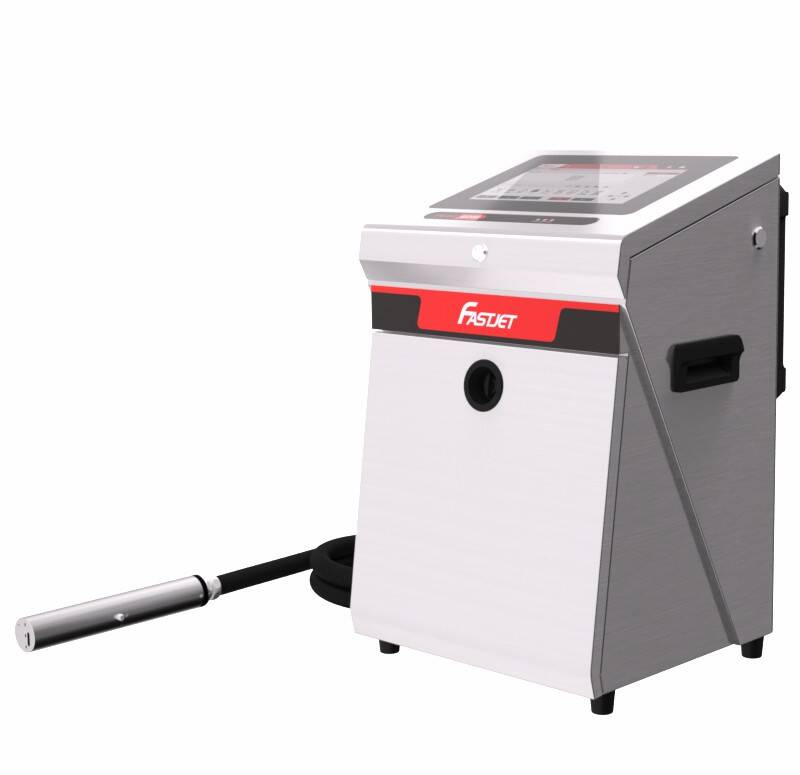

F640 CIJ
Product Introduction
FASTJET has designed the F640 small character inkjet printer to support 25-dot matrix printing font, adapt to multiple product information printing layouts, including production date, warranty period, batch number, logo, barcode, QR code, and other content.Provide Standard or High Quality print modes.The F640 is compatible with dye-based ink, ensuring reliable adhesion on PVC, PE, PET, and metal surfaces. Its User-friendly and efficient, enabling compliance coding for packaging in food & beverage, personal care, and other industries.
Product Features
10英寸彩色大触摸屏
出色的喷印能力
快速上手
经济实惠

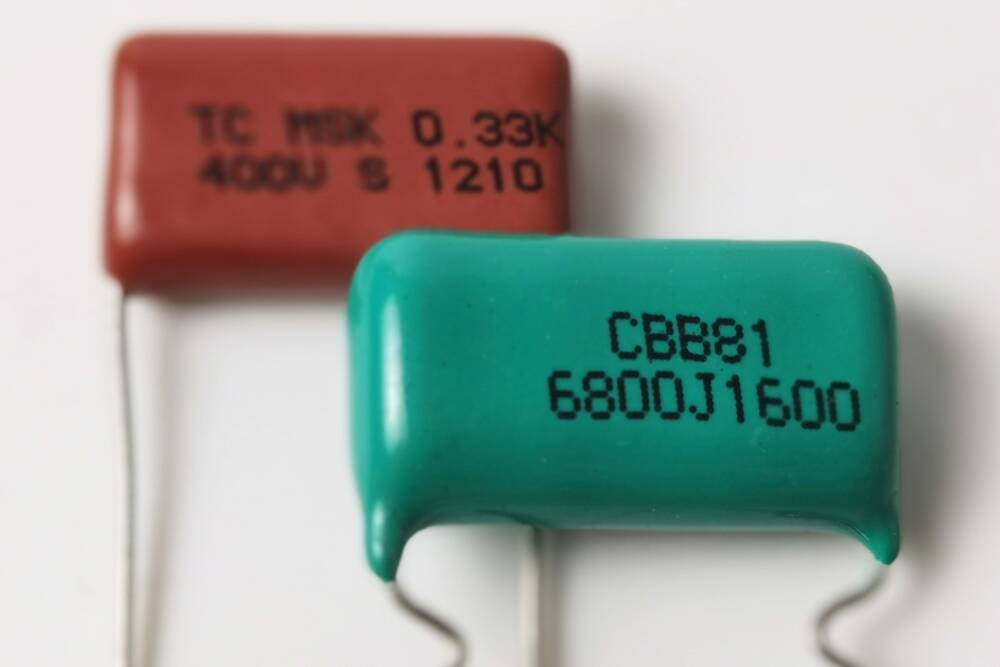

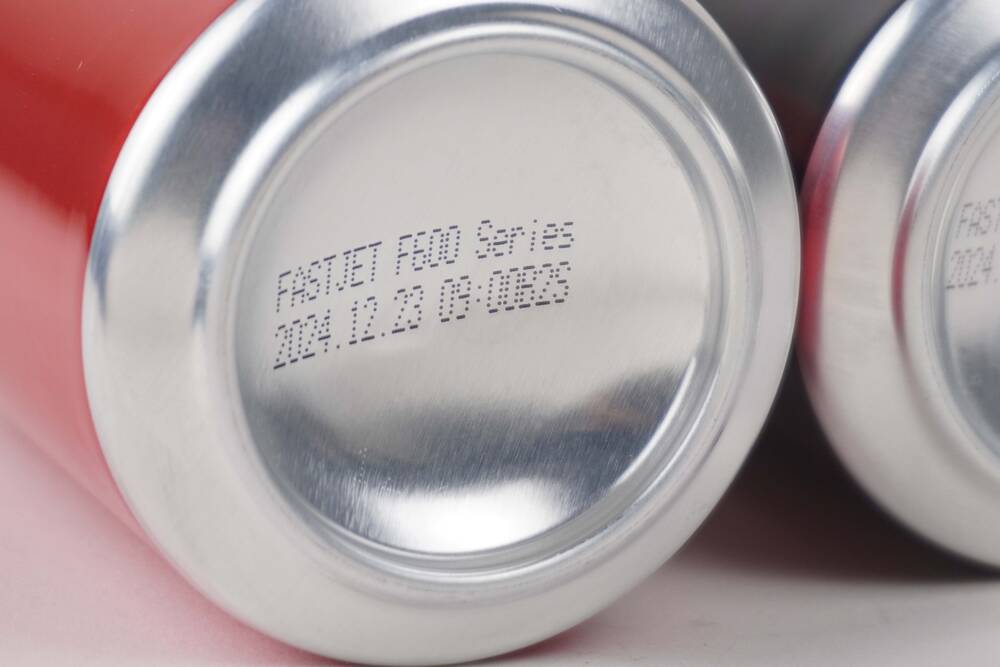

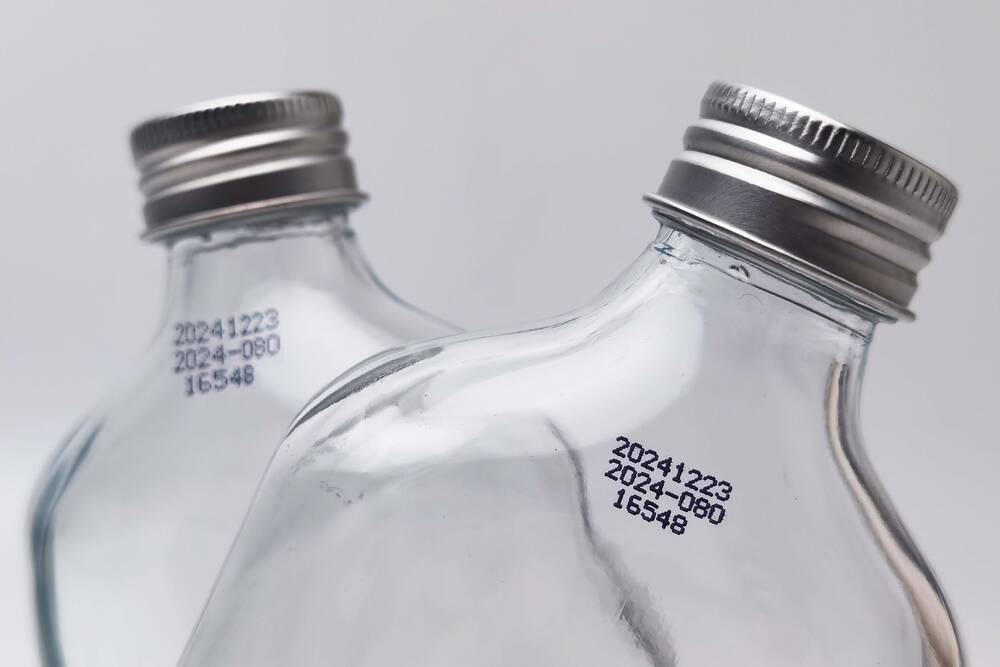

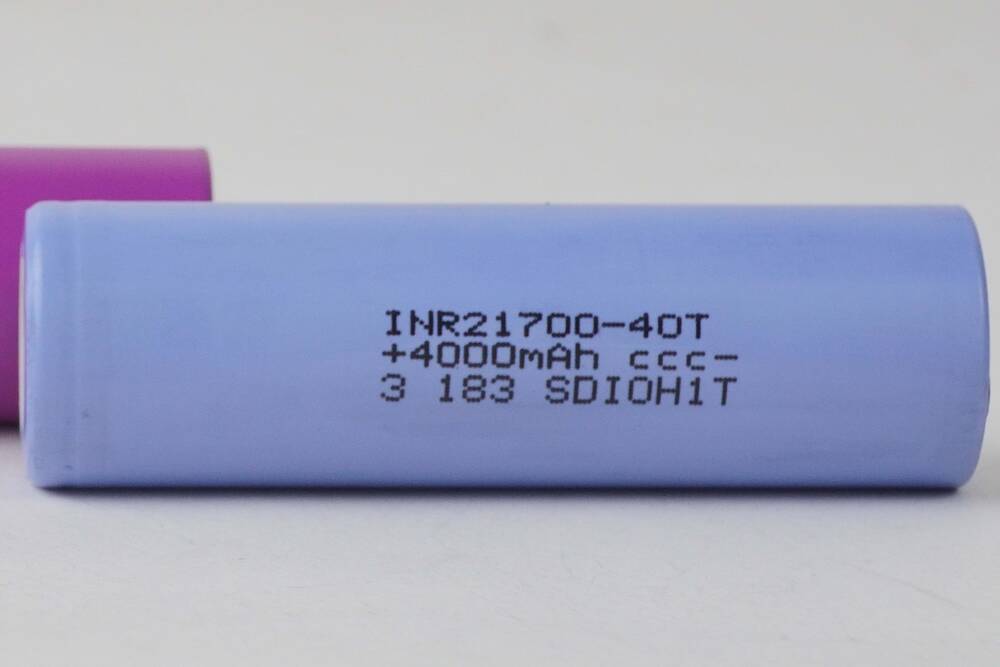

Printing Effects
Product Parameters
| F640 Configuration and Parameters | |
| 屏幕尺寸/类别 | 10英寸彩色触摸屏 |
| Nozzle Diameter | 60um 70um |
| Flexible Tube | 长:2700mm 直径:21mm 弯曲半径:150mm |
| 打印距离 | 5mm~40mm |
| 打印模式 | 标准、高质量 |
| 喷印行数 | 1行(25点阵),3行(7x5点阵) |
| 喷印字体 | 5x5,6x5,7x4,7x5,9x6,9x6 bold,11x8,11x8 bold,16x11,24x17 |
| 打印内容 | 数字，字符，二维码、条形码、班次、图案 |
| Message Editing | WYSIWYG |
| 界面Languages | 简体中文，繁体中文，英语，法语，德语，葡萄牙语，瑞典语，越南语，西班牙语，土耳其语，俄语，阿拉伯语等 |
| 数据接口 | USB,**TCP/IP,**RS232 |
| Electrical Requirements | 100-120V/200-240V AC 47-63Hz 3.5A 额定156W (典型92W) |
| 工作环境 | 5~45℃,90%相对湿度无冷凝（使用选定的墨水，根据生产环境调 整，实际安装可能需要其他硬件。） |
| Protection Rating | IP55 |
| 墨盒/溶剂盒容量 | 750ml |
| 适用墨水 | 染料型 |
| 净重 | 25kg |

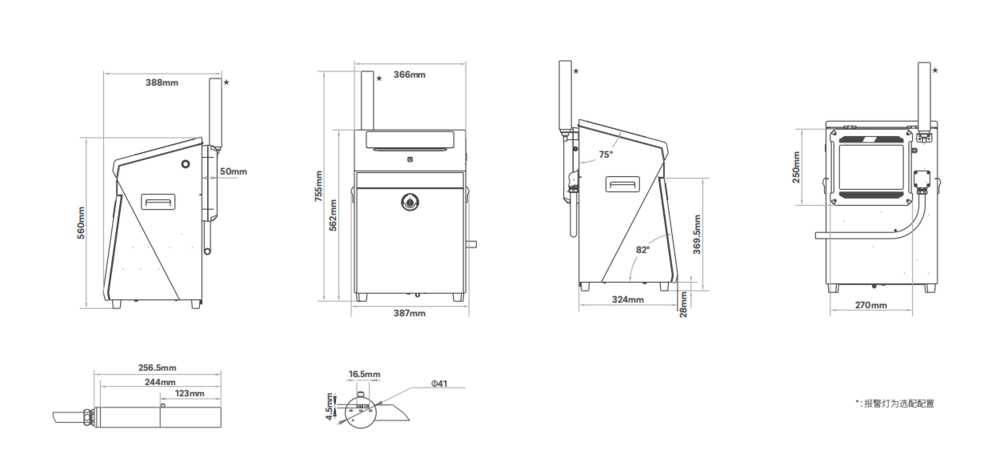

Product Dimensions (Unit: mm)
